30′ X 100′ Extreme Duty High Tunnel Kit
Engineered for heavy snow loads and high winds. The HT10030XD features 15-gauge galvanized steel and oval structural geometry for superior strength.
15-Gauge Galvanized Steel
Don’t settle for retail-grade 18-gauge tubing. Our frames use 150guage steel that is 30% thicker, providing maximum crush resistance against heavy snow and strong winds.
Oval Structural Profile
Our 1-⅜” x 2-⅝” oval profile offers better strength than round or square tubing, it is the same idea as a double I beam, but with no sharp edges to damage your cover. This profile provides rigid structural integrity.
4-Foot Arch Spacing
We don’t cut corners. Our truss arches are spaced at a tight 48-52 inches, significantly increasing load capacity compared to the industry standard 5- 6 foot spacing

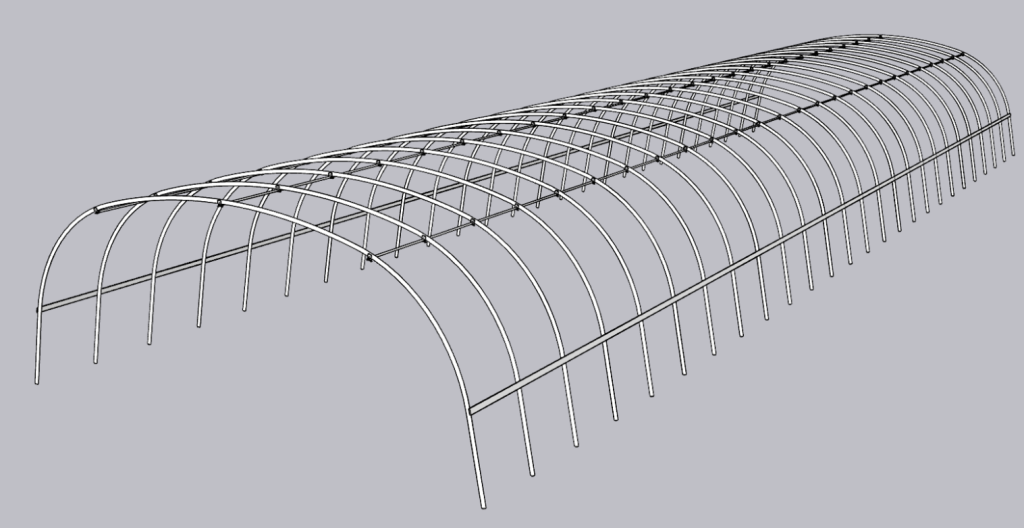

The Complete HT10030XD Package
Every kit ships ready to assemble.
- (24) Complete Truss Arches: Heavy-duty, 15-ga, oval cross section, galvanized steel.
- (96) Anchors Brackets: To securely bolt the frame to a concrete foundation.
- (3) Runs of Purlins: Full-length ridge and side bracing for lateral stability.
- 6-Mil Poly Cover: UV-resistant greenhouse film with 4-Year Warranty.
- Hardware Kit: Includes 100+ wind clamps, brace bands, and bolts.
- PDF Assembly Manual: Detailed step-by-step guide included.
- Much More: See instruction manual for full enumerated list.
Ready to Build Your Extreme Duty High Tunnel?
Kits are crated and ready for nationwide freight shipping. Contact us for a custom quote including delivery to your site.
